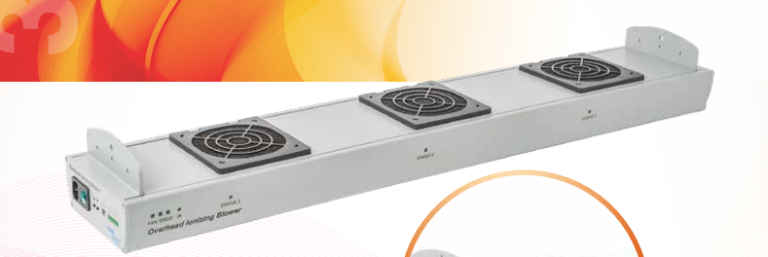

CI Model : 3830 3 Fans Overhead Ionizing Blower, ±5V Balance

Model 3830 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 3830 ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specification. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

Features :

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Personal Safety Fan Grill Cover
  • IR Remote control
  • Fan Speed Adjustable
  • Optionally available with auto clean brush & LED lights
  • Balance: < ±5V
  • Dimension (WxHxD): 1000x118x180mm
  • Model 3830E : with Auto clean brush option
  • Model : 3830L : No Auto clean brush but with LED lights
  • Model : 3830EL : with Auto clean brush & LED lights
Download Data Sheet

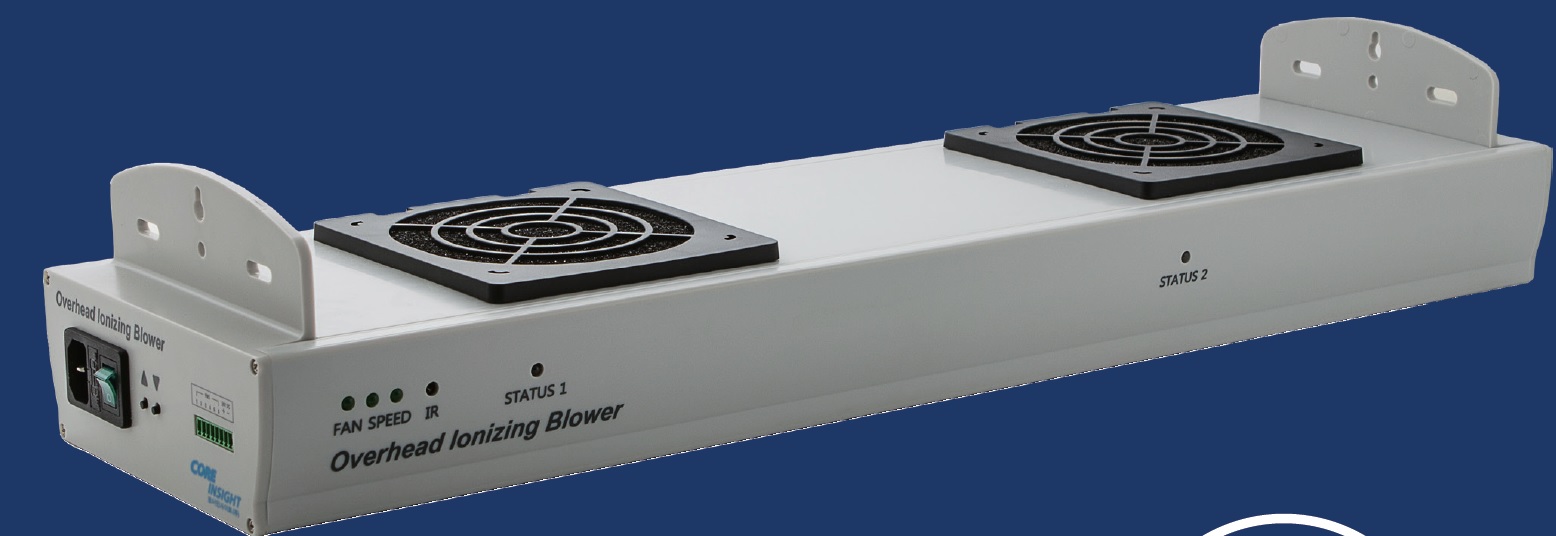

CI Model : 3820 2 Fans Overhead Ionizing Blower, ±10V Balance – NEW

Model 3820 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 3820 ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specification. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

Features :

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Personal Safety Fan Grill Cover
  • IR Remote control
  • Fan Speed Adjustable
  • Daisy chained AC Power Distribution
  • Optionally available with auto clean brush & LED lights
  • Balance: < ±10V
  • Dimension (WxHxD): 680x118x180mm
  • Model 3820E : with Auto clean brush option
  • Model : 3820L : No Auto clean brush but with LED lights
  • Model : 3820EL : with Auto clean brush & LED lights
Download Data Sheet

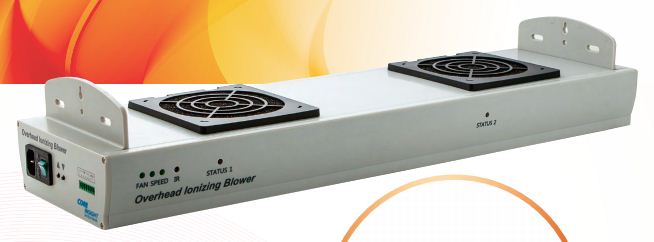

CI Model : 3302, 2 fans Overhead Ionizer

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

Model 3302 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications.

Model 3302 ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specification. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Personal Safety Fan Grill Cover
  • IR Remote control
  • Fan Speed Adjustable
  • Optionally available with Auto Clean brush & LED lights
  • Balance: < ±20
  • Dimension (WxHxD): 680x118x180mm
  • Model 3302E : with Auto clean brush option
  • Model : 3302L : No Auto clean brush but with LED lights
  • Model : 3302EL : with Auto clean brush & LED lights
Download Data Sheet

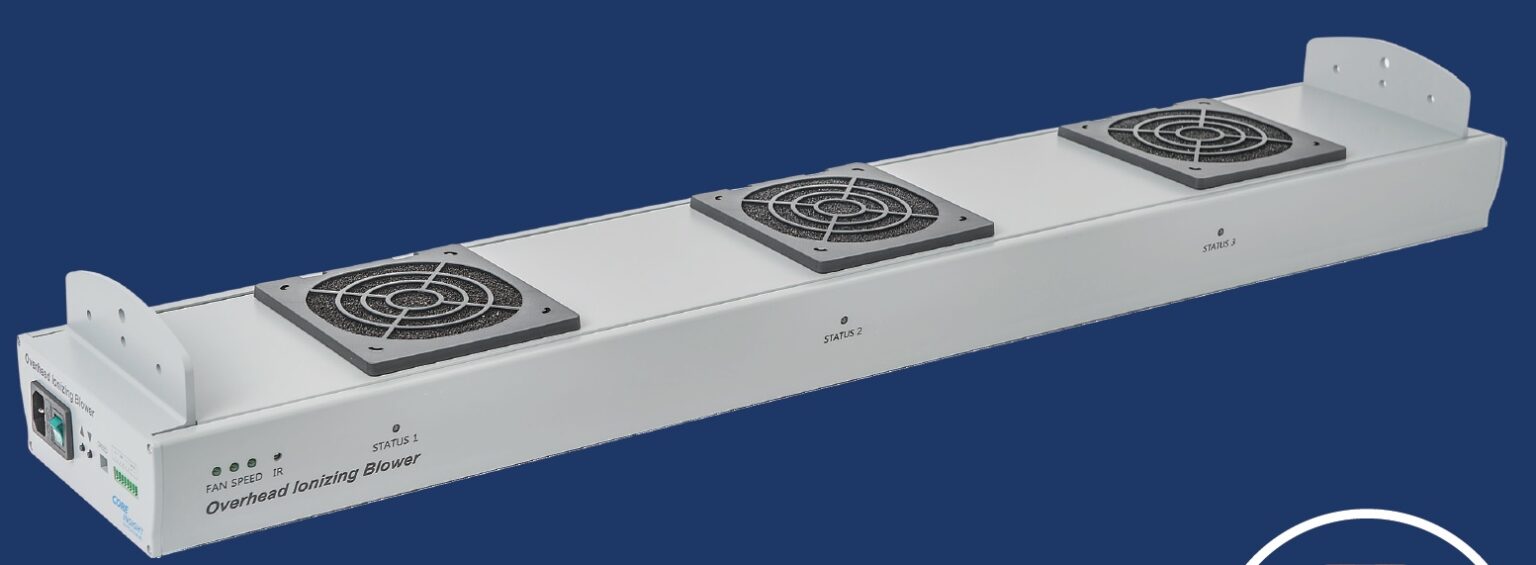

CI Model : 3303, 3 fans Overhead Ionizer

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

Model 3303 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications.

Model 3303 ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specification. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Personal Safety Fan Grill Cover
  • IR Remote control
  • Fan Speed Adjustable
  • Optionally available with Auto Clean brush & LED lights
  • Balance: < ±20
  • Dimension (WxHxD): 1000x118x180mm
  • Model 3303E : with Auto clean brush option
  • Model : 3303L : No Auto clean brush but with LED lights
  • Model : 3303EL : with Auto clean brush & LED lights
Download Data Sheet

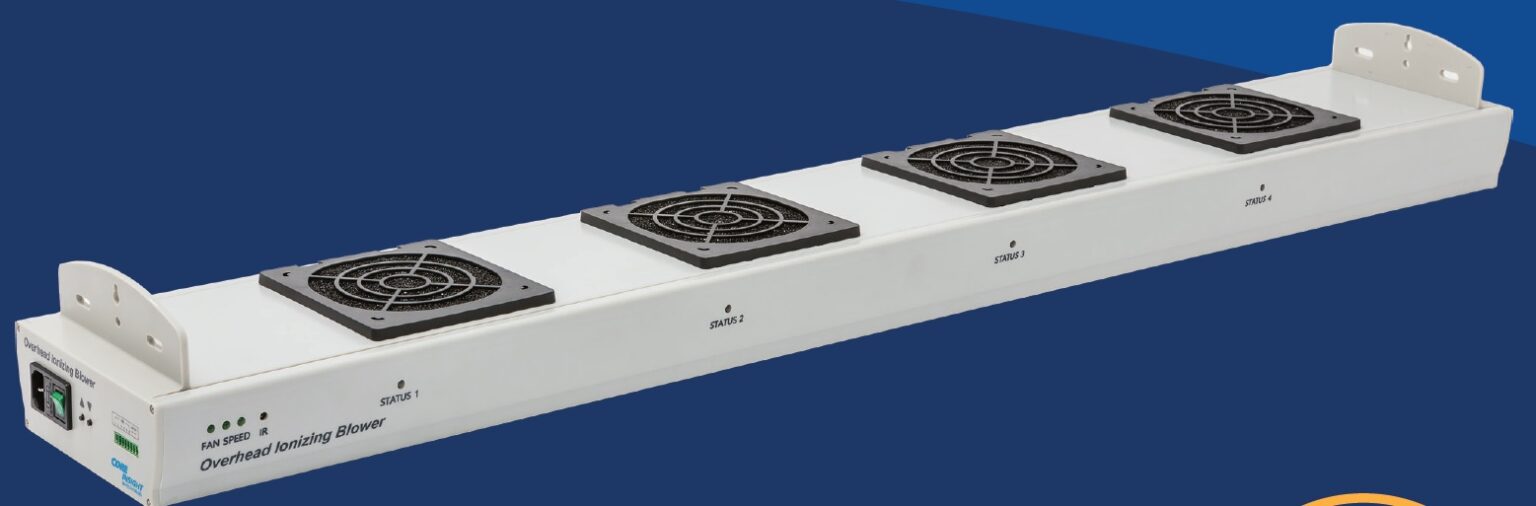

CI Model : 3304, 4 fans Overhead Ionizer

Tribocharging is a typical ESD source and induced feld from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization
systems.


Model 3304 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications.


Model 3304 ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specifcation. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

Features :

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Personal Safety Fan Grill Cover
  • IR Remote control
  • Fan Speed Adjustable
  • Optionally available with Auto Clean brush & LED lights
  • Dimension (WxHxD): 1200x118x180mm
  • Model 3304E : with Auto clean brush option
  • Model : 3304L : No Auto clean brush but with LED lights
  • Model : 3304EL : with Auto clean brush & LED lights
Download Data Sheet
