ESD Event Monitor

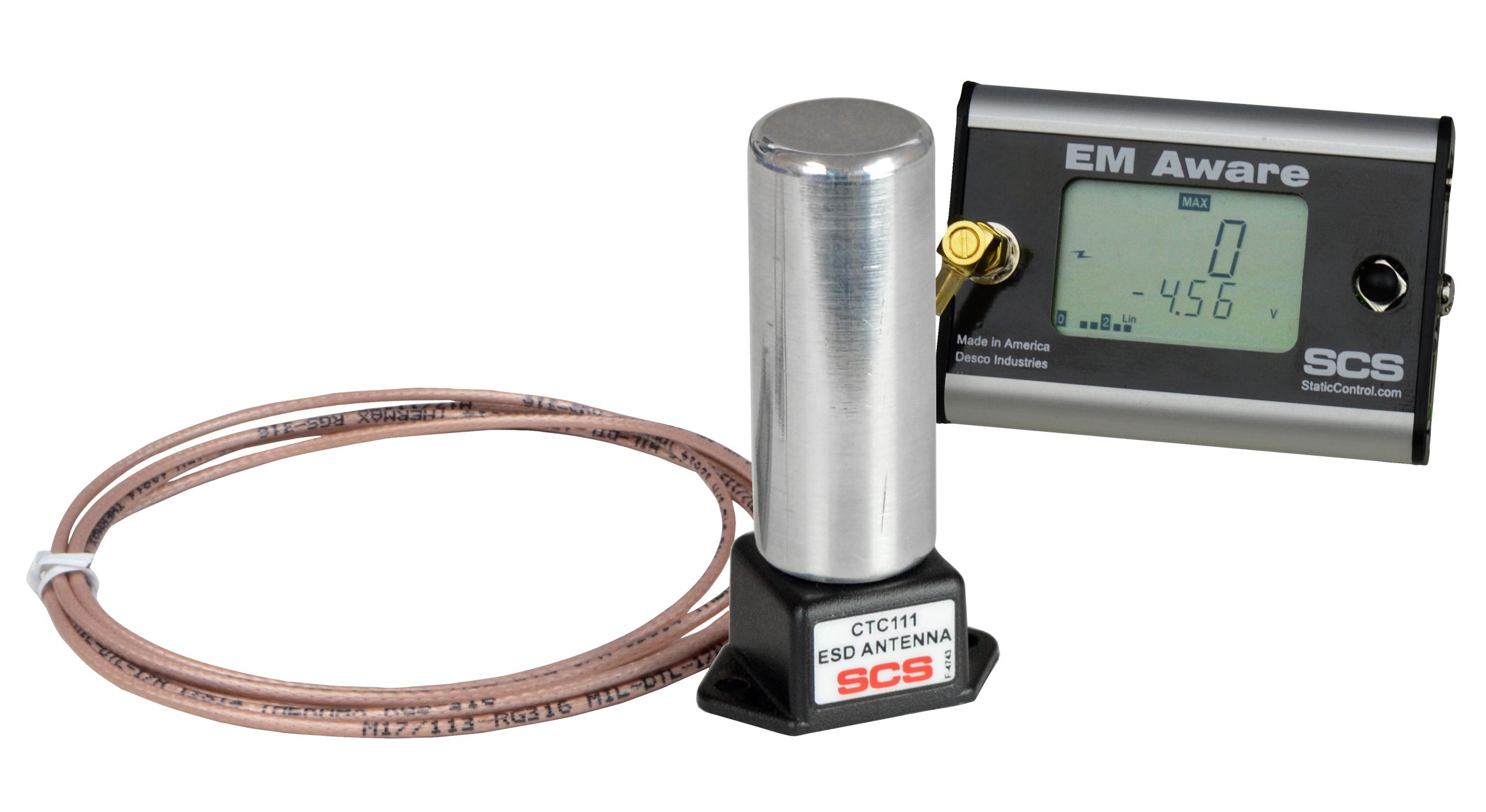

Continuous Monitor
Counts and provides real-time detection of most ESD events and their magnitudes
Comprehensive Diagnostics Tool
Identifies problematic environments and qualifies tools for handling ESD-sensitive devices
Analog Data Output (4.20 mA) for use with data acquisition software
High Temperature Antennas Available (can withstand up to 165 Deg C)

Detects, counts and measures ESD events
Calculates event magnitude for Charged Device Model (CDM), Human Body Model (HBM) and Machine Model (MM)
Records all measurements to a microSD card for PC download
Touchscreen display provides intuitive user interface
Rechargeable lithium ion battery

ESD Event Indicator
Detects and counts ESD events for control program troubleshooting and improvement.
Ten LED Display shows the relative strength of the ESD event.
Adjustable Alarm Threshold
Four-Digit Counterto display the number of ESD events that occurred at or above the alarm threshold.
CDM Filter Switch -Filters and rejects EMI signals that are not caused by CDM discharges
Portable Operation with 9 Volt Battery
