Test Instruments

Lightweight, user-friendly Analog Surface Resistance Megohmmeter
Two different test scales and settings for testing both surface-to- ground (Rtg) and surface-to- surface (Rtt) resistance
Color-coded number scales help identify ideal resistance ranges
Kit contains:
– 1 Megohmmeter
– 2 Test Weights (5 lbs. each)
– 2 Test Leads (10 ft. each)
– 1 Insulated Bulldog Clip
– 1 Alligator Clip
– 1 Continuity Test Plate
– 2 Batteries (3.6V and 1.5V)
– 1 Molded Carrying Case

Large OLED Display
Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
Internal Memory
Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.
Digital Compliance Verification Surface Resistance Meter Kit
Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
Resistance Range: 1.0 x 10³ to 1.0 x 10¹² Ohms
Kit Includes:
- 1 Digital Surface Resistance Meter
- 2 Test Leads, 5′ Length
- 2 5 lbs. Electrodes
- 1 Electrode Spacer, 10″
- 1 Electrode Spacer, 36″
- 4 AA Alkaline Batteries
- 1 Ground Plug Adapter
- 1 Gator Clip
- 25 Measurement Location Labels
- 1 Plastic Carrying Case
- 1 Certificate of Calibration

2-Point (Two Pin) Resistance Probe for Small Samples or Small Areas
Measures surface resistance per ANSI/ESD STM11.13-2015
Gold Plated, Spring-Loaded Pins with Conductive Rubber Electrodes
Maintains consistent contact with small and/or non-flat surfaces
Compatible with the SCS 770760Resistance Pro Meter Kit

Concentric Ring Probe for Surface Resistance Meters
Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
Spring Loaded, Self-Aligning Center Electrode
Maintains consistent contact between the fixture’s conductive rings and the material under test
Compatible with the SCS 770760Resistance Pro Meter Kit

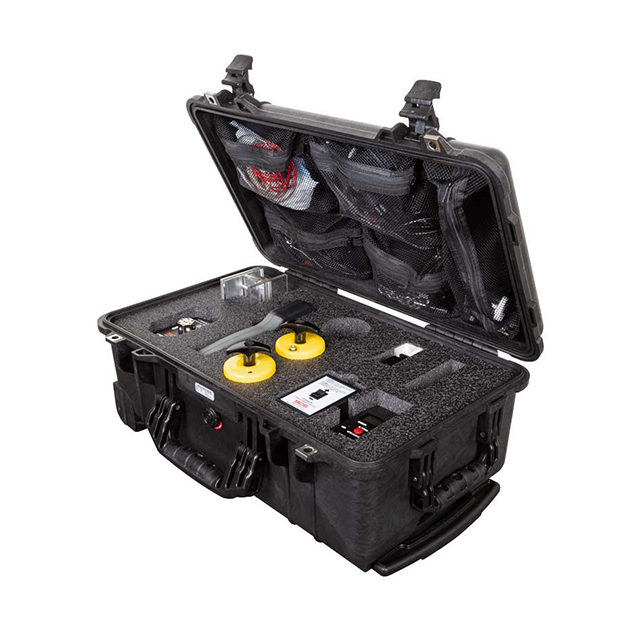

SCS EOS/ESD Assessment Survey Kit
Use to measure, verify and qualify products for use in the ESD Protected Area in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents.
Kit Includes
770760 Resistance Pro Meter Kit
Measures resistance point-to-point (Rtt) or surface-to-ground (Rtg)
770765 Handheld Electrode
Meets resistance measurement requirements of TR53 and ANSI/ESD STM97.1
CTM048-21 EM Eye – ESD Event Meter
Detects, counts and measures ESD events that can damage ESD items and cause tool lock-ups, erratic behavior and parametric errors
CTM051Ground Pro Meter
Confirms that an AC electrical outlet’s wiring is correct and the path to equipment ground conductor (the green wire) is intact and to measure ground impedance in accordance with ANSI/ESD S6.1 and ANSI/ESD S20.20 required limits
718 Static Sensor and 718A Air Ionizer Test Kit
Measures electrostatic fields, offset voltage (balance) and charge decay of ionization equipment
ESD Training Paddles Set
Demonstrates the creation and polarity of electrostatic charges and the functionality of ESD control products

Portable Meter for Testing of Electrostatic Fields
Measures surface voltage and polarity on objects up to ±19.99 kV at a distance of 1 inch
Chopper-Stabilized Sensor
Yields accurate measurements in both normal and ionized environments
Dissipative Enclosure with 7 mm Ground Snap
Grounds the meter when held by a grounded operator or bonded to ground using the included ground cord
Rotary Zero Knob
Sets the zero-reference point with finely tuned precision
LED Range Indicator
Assists with placing the meter at the correct distance from the object being measured
Hold Button
Allows the measurements to be retained for easy reading and extends battery life

Portable Kit for Testing of Offset Voltage and Discharge Times of Air Ionizers and Electrostatic Fields
Measures surface voltage and polarity on objects up to ±19.99 kV at a distance of 1 inch
Aluminum Conductive Plate
Pairs with the SCS Static Sensor to measure offset voltage and discharge times for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53
±1000V Charger
Applies charge to the conductive plate to measure discharge times of air ionizers
Dissipative Enclosure with 7 mm Ground Snap
Grounds the meter when held by a grounded operator or bonded to ground using the included ground cord
Rotary Zero Knob
Sets the zero-reference point with finely tuned precision
LED Range Indicator
Assists with placing the meter at the correct distance from the object being measured
Hold Button
Allows the measurements to be retained for easy reading and extends battery life
Includes Carrying Case

Handheld Meter for Measuring Offset Voltage and Discharge Times of Air Ionizers
Used for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53.
Timer for Decay Rates from ±1000V to ±100V
Measures ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area.
180 Degree Rotary Head with 2.75” x 1.25” Plate
Allows operator to read display at various angles
Zero Point Adjustment Button
Ensures measurement accuracy and repeatability
Powered by 2 AA Batteries
Includes Ground Cord and Soft Carrying Case

Battery Powered Two-Point Resistance Probe
Measures surface resistance of small samples or dedicated areas of large samples
Gold Plated, Spring-Loaded Pins with Conductive Rubber Electrodes
Maintains consistent contact with small and/or non-flat surfaces
Color Coded LEDs
Provides exponent range for quick checks of ESD control items
Easy To Use
Press down the spring loaded pins onto the sample under test until the probe’s limiter makes contact and you have the LED indication of the surface resistance
