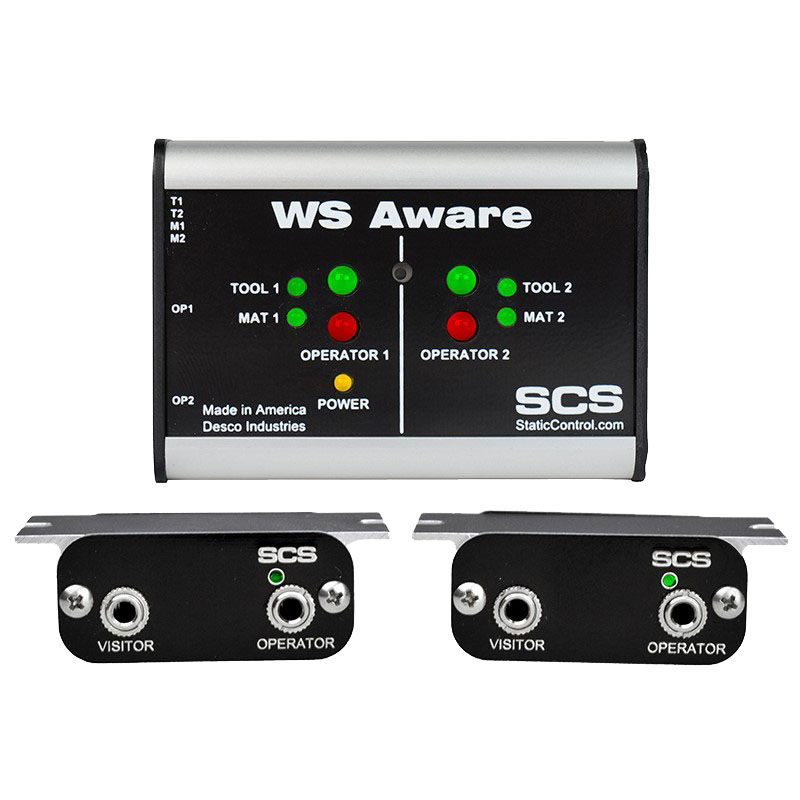

CTC061 WS Aware

  • Dual Workstation Continuous Monitor
  • Monitors 2 x Operators, 2 x Metal grounds, 2 x Soft (Dissipative) Ground
  • Digital Signal Processing Technology
    Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
  • Operator Body Voltage Detection
  • EMI Monitoring on Metal Grounds
    Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
  • System Includes Monitor and Two Remote Terminals
  • 3 Options for data output
  • Digital Data Output (CTC061-5)
    Outputs Modbus serial communication for use with Static
    Management Program (SMP)
  • Analog Data Output (CTC061-3)
    Interfaces with data acquisition systems that accept a 4.20 mA input signal
  • Relay Terminal (CTC061-RT)
    Outputs 0/20 mA logic level for relay input
  • Use with Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
DOWNLOAD DATA SHEET

CTC062 WS Aware

  • Dual Workstation Continuous Monitor
  • Monitors 2 x Operators, 4 x Metal grounds
  • Digital Signal Processing Technology
    Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
  • Operator Body Voltage Detection
  • EMI Monitoring on Metal Grounds
    Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
  • System Includes Monitor and Two Remote Terminals
  • 3 Options for data output
  • Digital Data Output (CTC061-5)
    Outputs Modbus serial communication for use with Static
    Management Program (SMP)
  • Analog Data Output (CTC061-3)
    Interfaces with data acquisition systems that accept a 4.20 mA input signal
  • Relay Terminal (CTC061-RT)
    Outputs 0/20 mA logic level for relay input
  • Use with Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
DOWNLOAD DATA SHEET

773 Wrist Strap & Ground Monitor

  • Operator and Equipment Ground Continuous Monitor
    Continuously monitors the path-to- ground integrity of 2 x operators and 2 x metal ground (tools); meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01- 01
  • Operator Body Voltage Detection
  • Digital Signal Processing Technology
    Applies a low test voltage to the operator (0.10V) for the handling of sensitive components
  • Miniature Size (0.85” H x 2.4” W x 2.6” L)
  • Use with Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
DOWNLOAD DATA SHEET

CTC331-WW Iron Man Plus Monitor

  • Single Workstation Continuous Monitor
    Continuously monitors the path-to- ground integrity of an operator and conductive or dissipative worksurface and meets
    ANSI/ESD S20.20 in accordance with ESD TR1.0-01- 01
  • Electrical Overstress (EOS) Detection
    Alarms if overvoltage (±5V or less) from a tool such as a soldering iron or electric screwdriver is applied to a circuit board under assembly
  • Operator Body Voltage Detection
  • Digital Signal Processing Technology
    Applies a low test voltage to the operator (0.40V) for the handling of sensitive components
  • Miniature Size (0.85” H x 2.4” W x 2.6” L)
  • Use with Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
DOWNLOAD DATA SHEET

CTC065 Ground Master, Equipment Ground Monitor

  • Provides independent ground monitoring of upto 8 x tools
  • Impedance limits can be set from 1 ohms to 20 ohms via rotary switch on the ground master (Factory default setting is 10 ohms)
  • 3 Options for data output
  • Digital Data Output (CTC065-5)
    Outputs Modbus serial communication for use with
    Static Management Program (SMP)
  • Analog Data Output (CTC065-3)
    Interfaces with data acquisition systems that accept a
    4.20 mA input signal
  • Relay Terminal (CTC065-RT)
    Outputs 0/20 mA logic level for relay input
  • EMI Monitoring on Metal Grounds
  • Upto 2 units of the Ground Master can be connected together
    via an extension port to monitor upto 16 x metal tools
DOWNLOAD DATA SHEET

CTC334-WW Ground Man Plus Monitor

  • Equipment Ground Continuous Monitor
    Continuously monitors the path-to- ground integrity of 1 x operator and 3 x metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01- 01.
  • Operator Body Voltage Detection
  • Digital Signal Processing Technology
    Applies a low test voltage to the operator (0.40V) for the handling of sensitive components.
  • Miniature Size (0.85" H x 2.4" W x 2.6" L)
  • Use with Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
DOWNLOAD DATA SHEET

CTE701 Workstation Monitor Checker

  • Use to perform periodic calibration testing of the following items:
    – CTC061 WS Aware Monitor
    – CTC062 WS Aware Monitor
    – CTC065 Ground Master Monitor
    – CTC331 Iron Man™ Plus Monitor
    – CTC334 Ground Man Plus Monitor
    – CTC337 Wrist Strap and Ground Monitor
    – 773 Wrist Strap and Ground Monitor
  • Eliminate downtime by verifying on-site that your continuous monitor is operating with tolerances
  • Loads resistance, impedance and voltage signals onto SCS continuous monitors
DOWNLOAD DATA SHEET
