CI Model : 310 Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 310 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 310 ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) alarm when HV power fail.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail)
  • Small Size for In-Tool and Bench Top
  • Balance : < ±20V
  • Dimensions (WxHxD) : 125x135x62mm (152×154.5×69.5mm with bracket)
Download Data Sheet

CI Model : 310A Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 310A has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 310A ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail)
  • Small Size for In-Tool and Bench Top
  • Balance: < ±20V
  • Dimension (WxHxD): 125x135x69.5mm (152×154.5×69.5mm with bracket)
Download Data Sheet

CI Model : 310B Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 310B has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 310B ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail)
  • Small Size for In-Tool and Bench Top
  • Balance: < ±10V
  • Dimension (WxHxD): 125x135x70mm (152x155x70mm with bracket)
Download Data Sheet

CI Model : 360A Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 360A has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 360A ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail only)
  • Small Size for In-Tool and Bench Top
  • Balance: < ±10V
  • Dimension (WxHxD): 80x110x64mm (105x120x64mm with bracket)
  • Model 360A-I : with power & balance alarm
  • Model 360A-II : with power & balance alarm and auto clean brush option
Download Data Sheet

Model 3110 Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 3110 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 3110 ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail or Balance fail.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail, Balance Fail)
  • Filter case Safety Function
  • Balance: < ±20V
  • Dimension (WxHxD): 148×185×76.6 mm (188×204.5×76.6mm with bracket)
Download Data Sheet

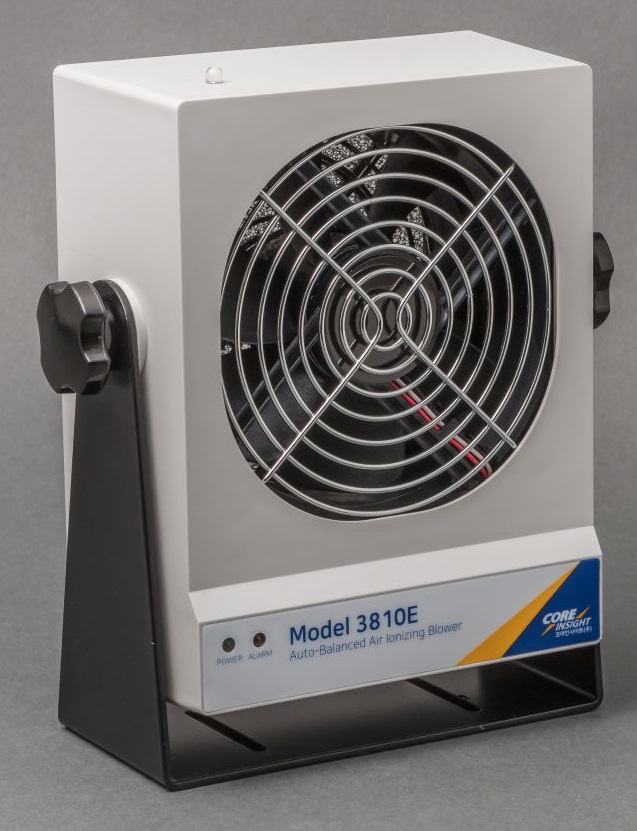

CI Model : 3810 Ionizing Blower

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

CoreStat auto-balanced technology, Model 3810 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 3810 ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will give real time ionizer status monitoring and visual (LED), audible (buzzer) alarm when HV power fail and out of balance.

  • CoreStat Auto-Balanced Technology
  • Steady-state DC Ion Emission
  • Low Balance
  • Facility Monitoring System(FMS) Interface
  • Alarm (HV Power Fail)
  • Small Size for In-Tool and Bench Top
  • Balance: < ±5V
  • Dimension (WxHxD): 148x185x77mm (188x 205x77mm with bracket)
  • Model 3810-II : with auto clean brush option
Download Data Sheet

SCS Model : 9110 Benchtop Air Ionizer

  • Built-in automatic emitter point cleaner
  • Balance : &lt; ±15V
  • Eliminates the build-up of static charges on insulative materials in a work area
  • Steady-state DC ionization
  • Adjustable fan speeds
  • Illuminated power switch
  • Easy-access cover for fan and emitter maintenance
  • White powder-coated metal housing

SCS Model : 960 Mini Air Ionizer

  • In-Tool Ionizer with Steady-State DC Emitters
  • Compact Size (4.5&quot; H x 3.3&quot; W x 2.0&quot; D with Bracket)
  • Less Than 4 Seconds Discharge Time with ±20 Volts Offset Voltage (Balance)
  • Daisy-Chain Power Cabling (upto 4 ionizers can be connected in series via one power adaptor

SCS Model : 9310, 3 Fans Overhead Ionizer

  • Built-in automatic emitter point cleaner
  • Balance : &lt; ±15V
  • Eliminates the build-up of static charges on insulative materials in a work area
  • Steady-state DC ionization
  • Adjustable fan speeds
  • Illuminated power switch
  • Easy-access cover for fan and emitter maintenance
  • White powder-coated metal housing

SCS Model : 975 Slim Ionizing Blower

  • Fast Discharge Times (<1 second at 30 cm)
  • Built-In Automatic Emitter Point Cleaners
  • External Terminal Block
  • Variable Fan Speeds (3.5 to 6.0 m/s)
  • Ionizer with Stand/Mounting Bracket (24 VDC Input)
  • ±5 Volt Offset Voltage Balance
  • Steady-State DC Emitters
  • Solid Tungsten Emitters
  • Powder Coated Steel Housing and Multi-Mount Stand
  • 100-240VAC Power Adapter with IEC Socket

SCS Model : 973 Slim Ionizing Blower

  • Fast Discharge Times (< 2.5 seconds at 30 cm)
  • Built-In Automatic Emitter Point Cleaners
  • External Terminal Block
  • Variable Fan Speeds (1.5 to 4.0 m/s)
  • Compact Ionizer with Stand/Mounting Bracket (24 VDC Input)
  • ±5 Volt Offset Voltage Balance
  • Steady-State DC Emitters
  • Solid Tungsten Emitters
  • Powder Coated Steel Housing and Multi-Mount Stand
  • 100-240VAC Power Adapter with IEC Socket
